CI-80R

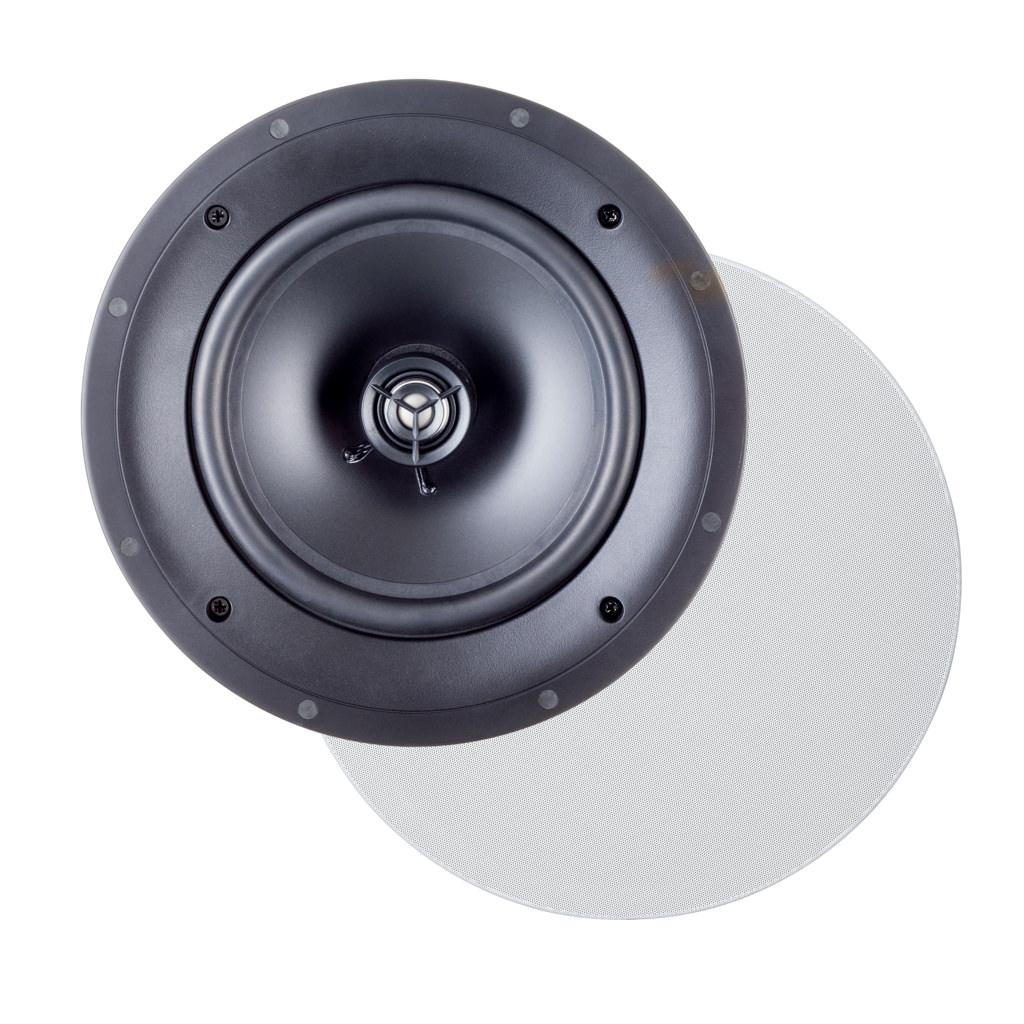

Paradigm CI Home H80-R

Rs.28,000.00 Rs.27,500.00

Availability: In Stock

SKU: CI Home H80-R.

CI Home H80-R Specifications



Design 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
Crossover 2nd-order electro-acoustic at 2.5 kHz
Frequency Response   On-Axis ±2 dB from 60 Hz – 20 kHz
Frequency Response   30° Off-Axis ±2 dB from 60 Hz – 18 kHz
High Frequency Driver 1″ (2.5cm) PTD™ dome
Mid/Bass Frequency Driver 8″ (20.3cm) mineral-filled polypropylene cone
Low Frequency Extension 45 Hz
Sensitivity   Room / Anechoic 90 dB / 86 dB
Impedance Compatible with 8 ohms
Suitable Amplifier Power Range 15-90 W
Maximum Input Power 60 W
Finishes White, paintable grille
Weight 4.4 lbs. (2 kg)
Overall Dimensions 10.375″ (26.5cm) Diameter
Cut-Out Dimensions 9.375″ (23.8cm) Diameter
Minimum Mounting Depth
Depth required is the distance
between 1/2″ drywall, or similar material.
3.375″ (8.6cm)

Product Description

Quick Specs

  • In-ceiling round (optional square grille).
  • 1″ PTD™ dome tweeter.
  • 8″ mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
  • Bezel-Free Micro-Perf Grille.
