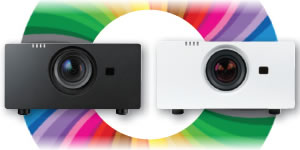

Optoma EH7700 Lumens -7500

Rs.670,000.00 Rs.660,000.00

Availability: In Stock

SKU: EH 7700.
Category: .
Spectacular image quality, outstanding brightness and ultimate reliability
  • 7500 lumens, WUXGA Resolution, Dual Lamp
  • Installation flexibility – 5x Motorised Lens options and 360˚ Operation
  • Live performance ready – Mechanical shutter, safety mounting points and flying frame options
  • Ultimate Control – Full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
  • Powerful Image Blending controls – 3-axis colour matching system and 8x lamp-power steps
  • Black,white and custom colour options
The ProScene EH7700 is the distillation of our projection expertise evolved into a product designed exclusively for demanding professional applications.

Dual-lamp, WUXGA and 7500 lumens delivers bright crystal clear images, ultimate reliability, and 24/7 operation to ensure that this is a projector on which you can rely.

The dust-sealed, filter free design prevents dust and dirt from affecting the system ensuring optimal image quality with minimal maintenance.

Product Description

Display Technology DLP™ Technology by Texas Instruments, 0.67” WUXGA, DC3,Type A chip
Native Resolution WUXGA 1920 x 1200
Brightness1 (Bright Mode) 7500 Centre Lumens using Bright colour wheel (Dual Lamp) / 7000 ANSI Lumens
Contrast 5000:1
Lamp Life2 Eco/Bright 2500/2000 (hrs)
Lens Options WT1 “Short throw 0.78 (Fixed)”
WT2 “Wide 1.22~1.47 (1.2x zoom)”
ST0 “Standard 1.45~1.95 (1.33x zoom)”
ST1 “High quality” 1.45~1.95 (1.33x zoom)”
TZ1 “Long 1.93~3.71 (1.9x zoom)”
TZ2 “Extra long 3.68~7.04 (1.9x zoom)”
Throw Ratio 3 0.77 ~ 6.98 “Lens dependent”
Zoom Type Motorised
Lens Shift Motorised lens shift, focus and zoom (+60% -20% V, ±10% H)
I/O Connectors 2 x HDMI, 5BNC, Component Video, 2 x VGA (YPbPr/RGB), S-Video, Composite, VGA Out, RJ45, RS232, +12v Tigger, Wired remote
Keystone Correction Horizontal +20° / Vertical ±20°
Weight (kg) 24Kg (without lens)
Dimensions (W x D x H) (mm) 439 x 549 x 235
Aspect Ratio 16:10 Native, 16:9/4:3 Compatible
Projection Screen Size Dependent upon lens
Projection Distance Dependent upon lens
Projection Lens 5 x lens Options “no lens supplied as standard”
Uniformity 95% (centre)
Maximum Resolution Native WUXGA (1920 x 1200)
Computer Compatibility WUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
Video Compatibility PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
Horizontal Scan Rate 15kHz to 100kHz
Vertical Scan Rate 25Hz to 85Hz
Displayable Colours 16.7 Million
Noise Level (Eco mode) 39dB
Power Supply 100 – 240V AC @ 50 – 60Hz
Power Consumption 970W BRIGHT Mode <0.5W Standby Mode, 730W Eco mode <0.5W Standby Mode
Lamp Type 350W x 2
Operating Conditions 5 ~ 40˚C, max. humidity 85%, max. altitude 3000m
Operating Temperature 0 ~ 750m, 5 ~ 40˚C,
750m ~ 1500m, 5 ~ 35˚C,
1500m ~ 3000m, 5 ~ 30˚C,
Heat Dissipation 3416 BTU/hr
Security 4-digit PIN code, Kensington Lock port, 2x M8 Safety Mounting Points (Eye Bolts supplied)
On Screen Display 18 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish,Greek, Norwegian/Danish, Hungarian, Czech
Remote Control Infra-red remote control, Multiple IR code sets for controlling multiple units, Wired connection sup
Standard Accessories VGA cable, AC power cord, Infra-red remote control, Batteries x 2, User manual CD, Quick start card, WEEE card, Warranty card
Optional Accessories Video colour wheel 6 Segment RGBCYM (Part No: SP.8JN07GC01)
Optional Wireless No
360’ Operation Yes (around horizontal axis)
Portrait Mode Not supported
Colour Wheel Bright wheel 6 Segment RGBCYW (Standard)
Video wheel 6 Segment RGBCYM (Optional) Part No: SP.8JN07GC01
Warranty 2 Years
Conformances CE, TUV-GS, CB
RoHS RoHS and WEEE
Features 5 x Optional Lens, Motorised Full Lens Shift, Mechanical Shutter, Crestron RoomView®, PJ-Link, Available in any colour, 360° Operation
